Features:
Heat insulation & preservation, energy-saving

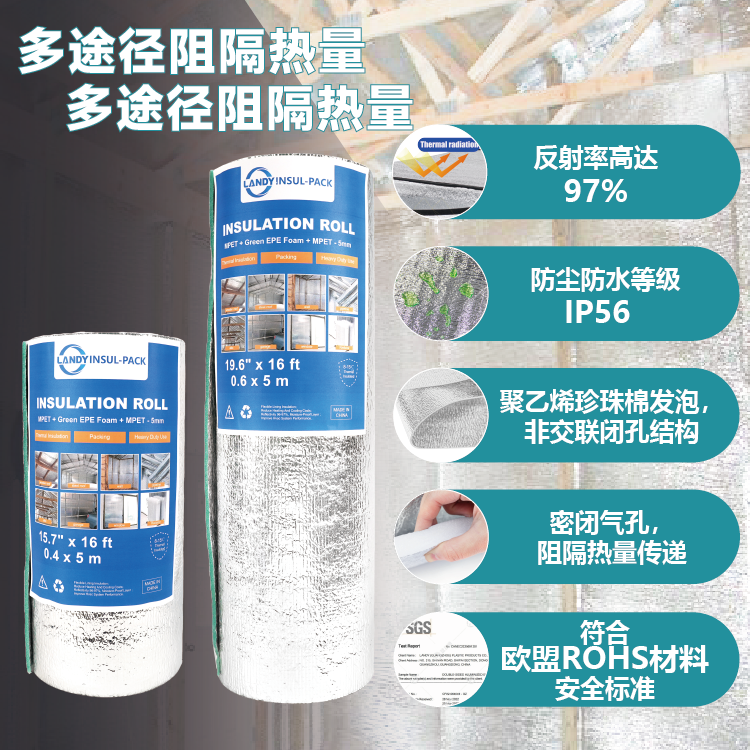

95%-97% reflectivity, ≥15℃ internal-external temperature difference, thermal conductivity ≤0.035
Excellent water & moisture resistance
Safe, eco-friendly, non-toxic
Easy to cut, install and clean

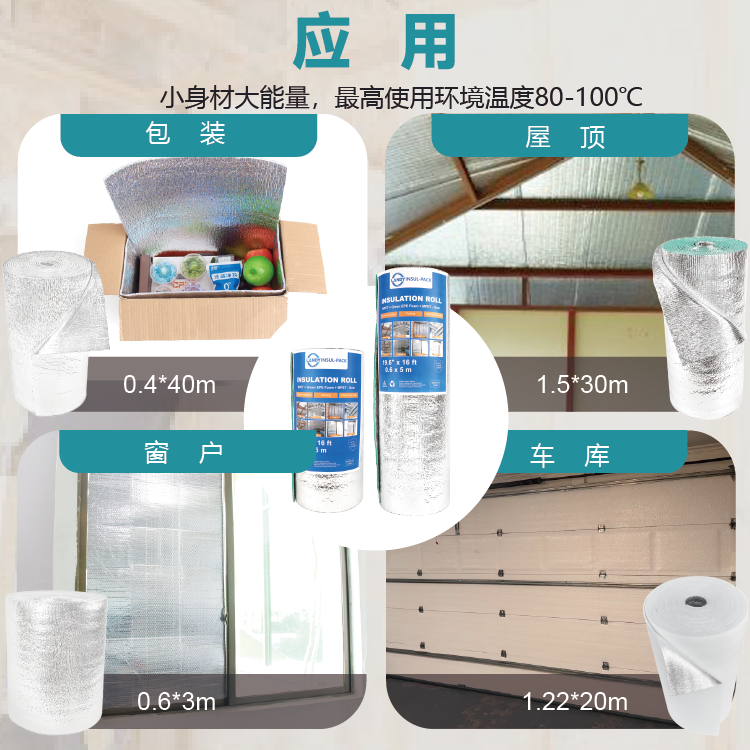

Applications:
External wall insulation for metal/wood/temporary buildings
Flat/pitched roof and ceiling insulation
Ground insulation
Insulation for air conditioning and heating systems
Insulation for doors, windows, stairs, garages, etc.
Insulation for special structures (e.g., breeding greenhouses, cold storage)
Production of related building insulation products
|
Test Items (Standards) |
5mm |
10mm |
|
Thermal Resistance (ASTM-C518-21) |
0.143 (㎡·K)/W |
0.25 (㎡·K)/W |
|
Thermal Conductivity (ASTM-C518-21) |
0.035 W/m·k |
0.04 W/(m·k) |
|
Reflectivity (ASTM E424) |
95% - 97% |
|
|
REACH Material Safety (1907/2006) |
241SVHC ≤0.1(ND) |
|
|
ROHS Material Safety (2011/65/EU) |
No 31 heavy metals detected |
|
|
High & Low Temperature Resistance (EN 1604:2013) |
-40℃-80℃ |
|
|
Water Vapor Transmission Rate (ASTM E96) |
<0.02㎡.h |
|
