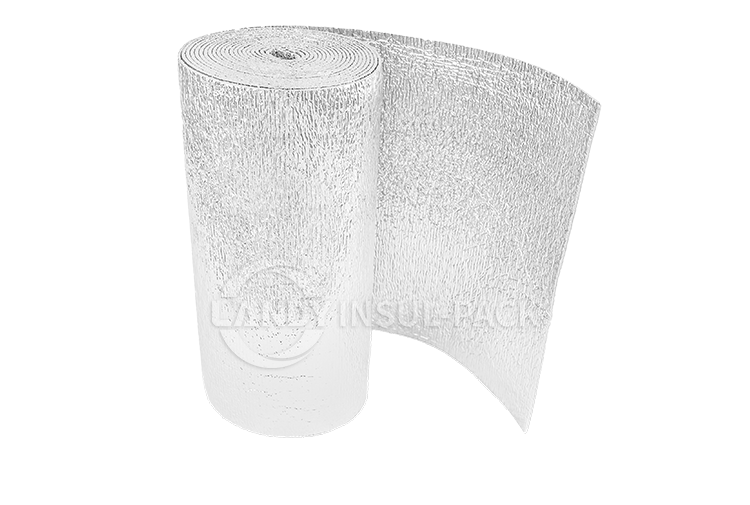

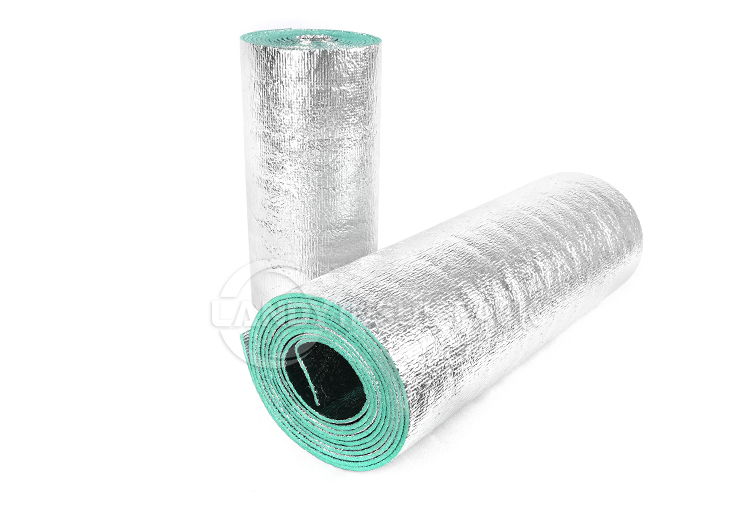

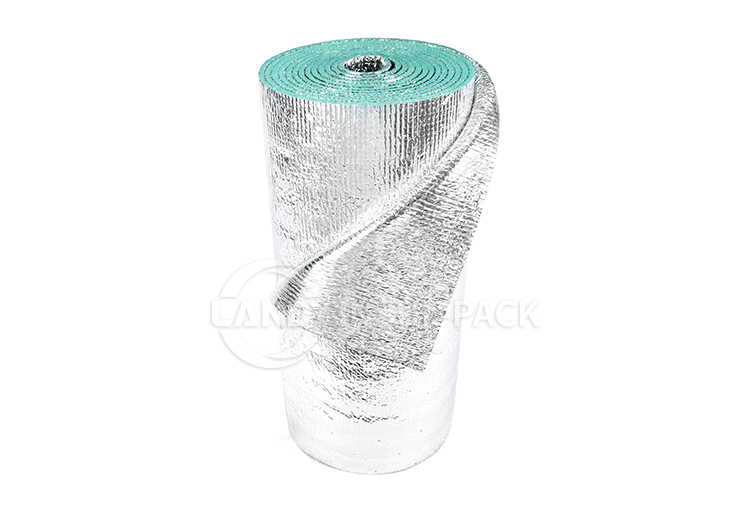

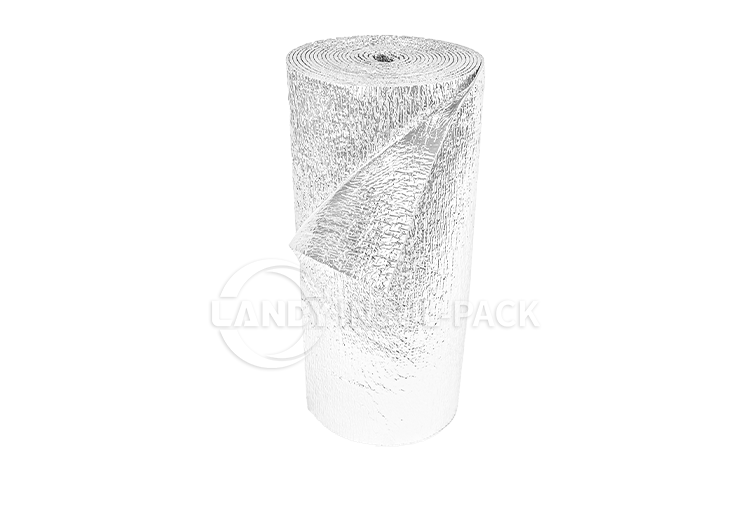

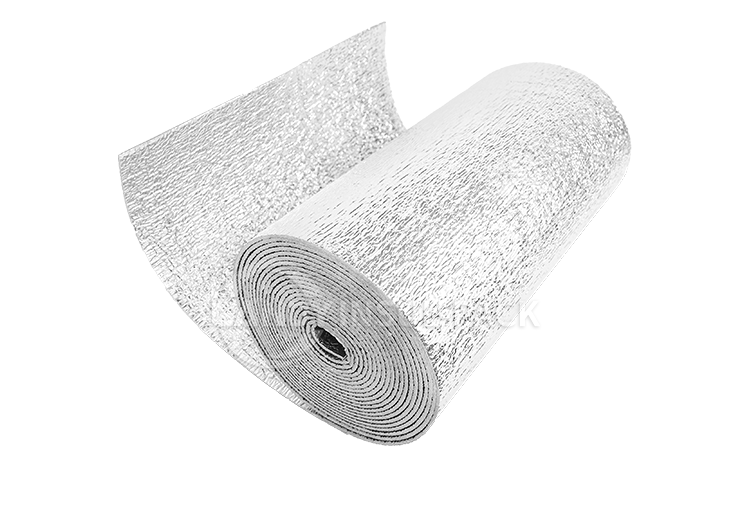

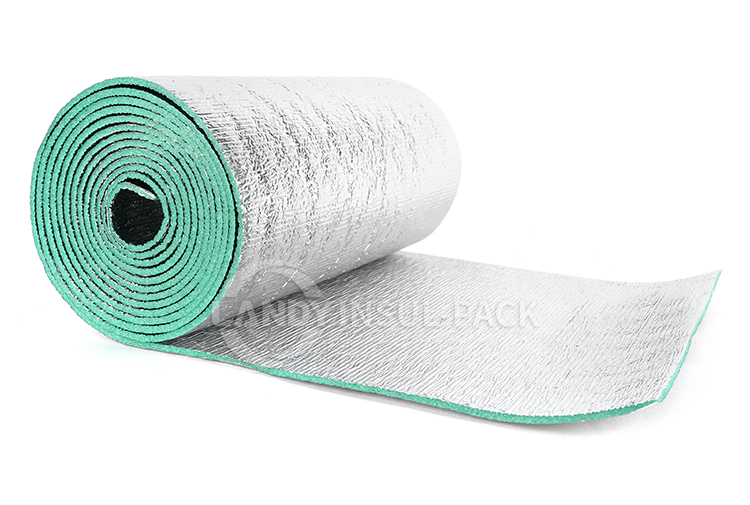

Aluminum-coated EPE composite thermal insulation roll

Product category:

Material: Aluminum-coated film + EPE cotton + Aluminum-coated film
Specifications: Length × Width × Thickness: 30m × 1.2m × 3~15mm

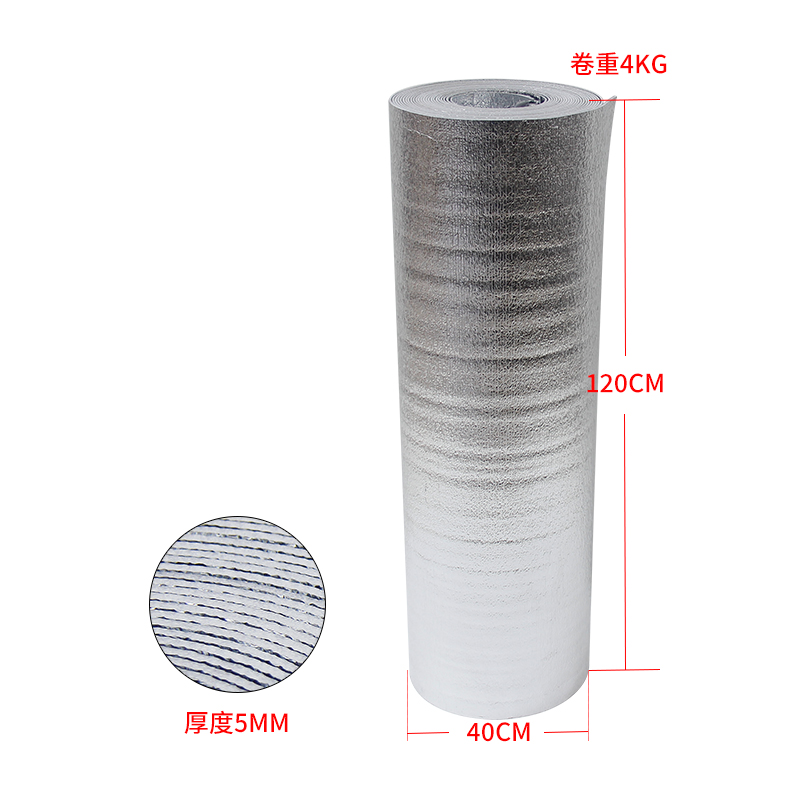

Roll weight (corresponding to a thickness of 5mm): Specification 1.2×30m, weight 4kg
Splicing method: aluminum foil-specific tape
Customizable
Customized width: 0.6m, 1m, 1.2m (common specifications)
(2) Custom thickness: 3mm, 5mm, 8mm, 10mm, 15mm, 20mm, etc.
(3) Product Customization: Various thermal insulation and heat preservation products (such as insulated bags, cold chain packaging, etc.) can be manufactured based on drawings or samples
Operating temperature: -40 to 100°C (product)
Packaging method: PE transparent plastic bag or carton box

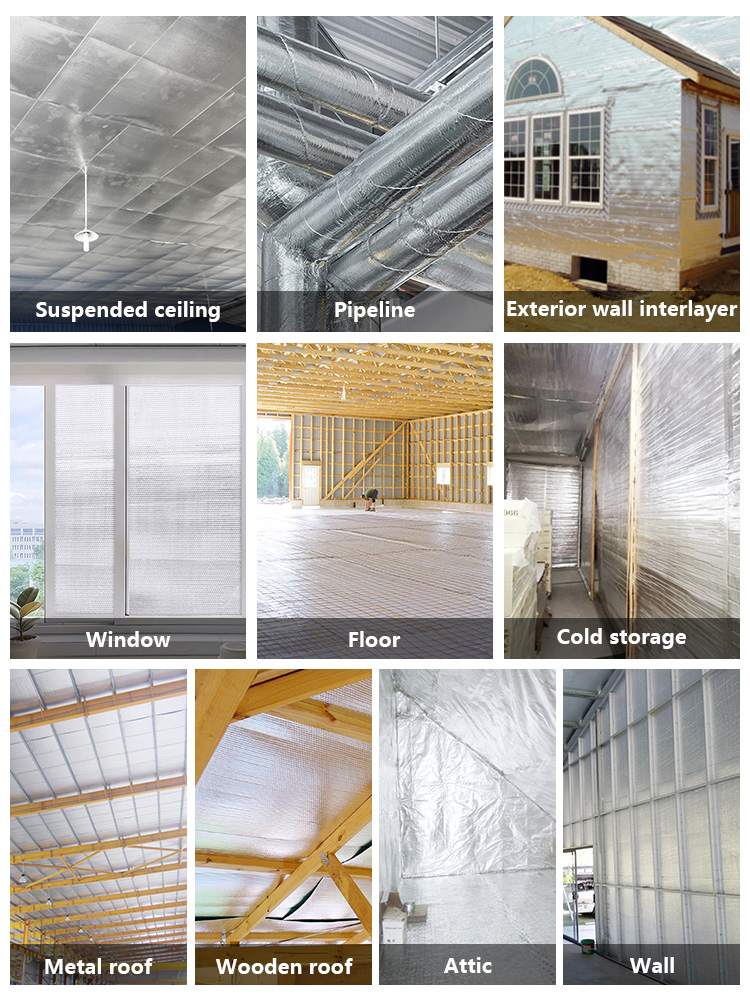

Main application scenarios:
Suitable for thermal insulation in the production, storage, logistics transportation, and distribution of frozen, refrigerated, and constant-temperature products; typical applications include cold storage door curtains, refrigerated vehicle compartment linings, insulated turnover boxes/bags, pallet packaging, container packaging, surface packaging, sunshades, and floor mats.

Product Introduction


Aluminum coated EPE composite insulation roll is a flexible lightweight composite roll material that integrates reflective insulation and conductive barrier. Its structure is composed of high reflectivity aluminum plated film and ultra-low thermal conductivity EPE (polyethylene) cotton composite through environmentally friendly technology, which is widely used in various scenarios requiring temperature stability, freshness and quality in cold chain logistics.


Features:
1. Efficient insulation: Aluminum plated film has a thermal reflectivity of ≥ 90%, effectively reflecting radiant heat; EPE cotton has an independent closed cell structure with a thermal conductivity of ≤ 0.035 W/(m · K), extremely low thermal conductivity, and blocks heat conduction from the source, effectively reducing temperature fluctuations.
2. Waterproof and moisture-proof; The surface is flat and smooth, with excellent waterproof and oil penetration resistance. In high humidity and dew prone environments, the material itself does not mold or rot, and can be wiped clean immediately.
3. . Green and environmentally friendly: The product has passed ROHS and REACH environmental certifications, is non-toxic, odorless, and non irritating, and can directly come into contact with food packaging
4. Convenient to use: The material is lightweight, with excellent flexibility, and can maintain good folding performance even in low temperature environments of -18 ℃, reducing storage space. Easy to handle, cut, and lay, greatly reducing operational difficulty.
5. Economic durability: The material is tough and can be reused multiple times, reducing the cost of a single purchase. Lightweight design reduces transportation energy consumption and has low overall usage costs, making it an ideal choice for cold chain insulation materials.

Test Items (Standards)

5mm

10mm

Thermal Resistance (ASTM-C518-21)

0.143 (㎡·K)/W

0.25  (㎡·K)/W

Thermal Conductivity (ASTM-C518-21)

0.035 W/m·k

0.04 W/(m·k)

Reflectivity (ASTM E424)

95% - 97%

REACH Material Safety (1907/2006)

Pass

ROHS Material Safety (2011/65/EU)

Pass

High & Low Temperature Resistance (EN 1604:2013)

-40℃-80℃

Water Vapor Transmission Rate (ASTM E96)

<0.02㎡.h

Explanation: (1) The above technical parameters were measured by authoritative third-party testing institutions or Lanerdi laboratories under specific working conditions. The actual usage environment may differ from the laboratory testing data.
(2) The above is a partial display of product parameters. For more detailed parameters, please consult our service personnel or refer to the technical parameters of relevant rolls.
