BP pure aluminum/aluminum coated bubble insulation tray cover

Product category:Cold Chain Logistics Packaging-Insulated Packaging for Warehouse

Material: Aluminum plated/pure aluminum+single-layer bubbles/double-layer bubbles+aluminum plated/pure aluminum (cotton layer can be added)

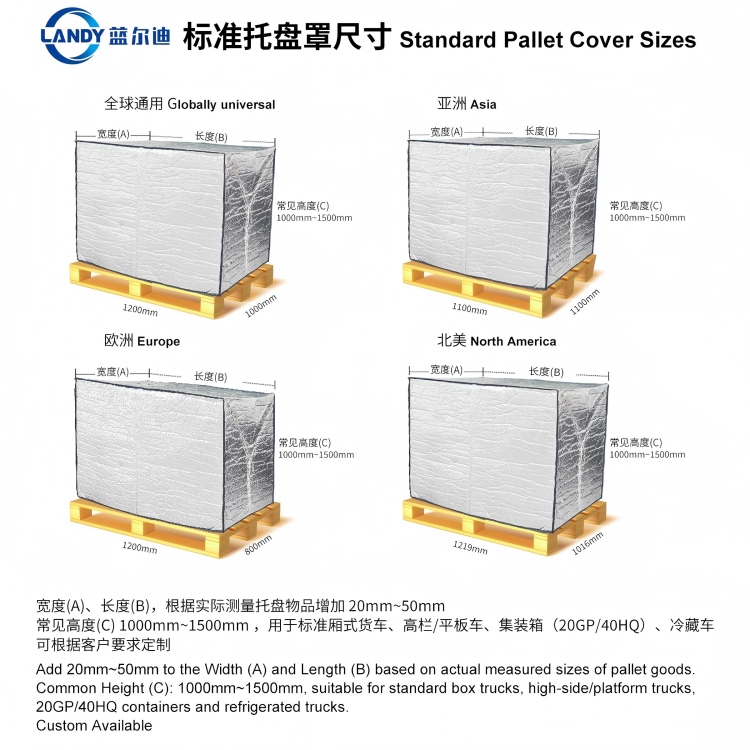

Common specifications:
Length x Width x Height: 1200mm x 1200mm x 800mm~1600mm
Length x Width x Height: 1200mm x 1000mm x 800mm~1600mm
Length x Width x Height: 1200mm x 800mm x 800mm~1600mm
Length x Width x Height: 1140mm x 1140mm x 800mm~1600mm
Length x Width x Height: 1100mm x 1100mm x 800mm~1600mm
Other tray specifications can be customized, and the height can be customized
Thickness: 3mm, 6mm, 8mm
Splicing and sealing: Zipper sealing, Velcro, sewing edge wrapping, etc., customizable
Style and Additional Features: 5 or 6 sided protection, transparent plastic windows, brand logo, etc., customizable.
Working temperature: -40~80 ℃ Product
Main application scenarios: (1) Cold chain fresh food: providing full thermal protection for the storage and transportation of temperature sensitive goods such as frozen food, fresh fruits and vegetables, dairy products, and red wine.
(2) Medical cold chain: provides compliant and reliable peripheral protection for the storage and transportation of temperature controlled goods such as vaccines, diagnostic reagents, biological samples, and pharmaceuticals.
(3) Precision Electronics: Provides cushioning, shock absorption, and moisture protection for the storage and transportation of precision components, optical equipment, and high-end electronic products.

Product Introduction


Features:
1. Efficient insulation, constant temperature and energy saving: Aluminum plated/PE film+bubbles+aluminum plated/PE film, a five layer composite structure, effectively blocks thermal radiation and conduction through a fully enclosed design. Not only can it significantly alleviate the severe temperature fluctuations of goods, but it can also reduce the energy consumption of cold chain equipment and lower operating costs.
2. Waterproof, dustproof, and shock-absorbing: The inner and outer aluminum film provides excellent waterproof and moisture-proof capabilities, blocking rainwater, moisture, and dust; The middle PE bubbles effectively absorb transportation bumps and impacts. Double protection ensures that the goods are clean and hygienic, free from contamination and impact.
3. . Green and environmentally friendly, safe and touchable: The product materials have passed international environmental certifications such as ROHS and REACH, and can directly come into contact with food packaging. They are non-toxic and odorless
4. Lightweight and simple, space saving: The material is lightweight, effectively reducing transportation load and carbon emissions. When not in use, it can be folded and stored, greatly saving storage space.


BP Palle Cover Technical Parameters

Performance

Index Value

Reference Standards

Insulation Test

Duration 6H Average temperature difference between inside and outside 41.5℃

Internal Standards

Alu Bubble
Thermal Conductivity

0.036 W/m.k

ASTM-C-518-21

Alu Bubble
Tensile Strength

329-373 N/50mm

JC/T 2494-2018

Environment Safety

REACH passed

REACH Regulation No. 1907/2006

Reflectivity

95-97%


High & Low Temp. Resistance

80℃ and -40℃, dimensional change rate <2%


Note: This product can be tested and customized according to different market standards with reference to varying market demands.

Explanation:
(1) The above technical parameters were measured by authoritative third-party testing institutions or Lanerdi laboratories under specific working conditions. The actual usage environment may differ from the laboratory testing data.
(2) The above is a partial display of product parameters. For more detailed parameters, please consult our service personnel or refer to the technical parameters of relevant rolls.

Product precautions
1. Storage environment: It is recommended to store in a cool, dry, and clean indoor environment, avoiding prolonged direct sunlight and keeping away from sharp objects to prevent aluminum film aging or damage.
2. Stacking height: When folding and stacking empty covers, it is recommended that the stacking height be ≤ 1.5 meters to prevent deformation of the bottom cover under pressure.
3. Daily cleaning: Use a clean damp cloth to wipe surface stains and let them air dry naturally. Do not use hard brushes, strong acids, strong alkalis, or organic solvents for cleaning to avoid damaging the aluminum film layer.
4. Transportation/Stacking Protection: When transporting or storing stacks, it is recommended to place a piece of kraft paper, corrugated cardboard, or specialized anti slip paper between the upper and lower insulation covers. This can effectively prevent friction damage to the aluminum film, while enhancing interlayer friction and improving stacking stability.
5. Other questions: For more usage details, please refer to the product manual or consult our sales personnel.


To meet the personalized needs of different goods, pallets, and usage scenarios, we provide comprehensive customization services:
1. Size customization: Tailored according to your pallet specifications and cargo stacking height to ensure a perfect fit.
2. Structural customization: Multiple structures are available, including five/six face mask bodies, side zippers for easy inspection, and bottom elastic bands for reinforced bonding.
3. Material customization: Special properties such as anti-static, ultra-low temperature resistance, or food contact grade can be added as needed.
4. Sample making service: Provide customized sample services, confirm accuracy, and mass produce to reduce procurement risks.
5. Printing customization: Customized logos, operation instructions, or barcodes can be printed on the surface of the cover to enhance the brand image.
