Performance

Index Value

Reference Standards

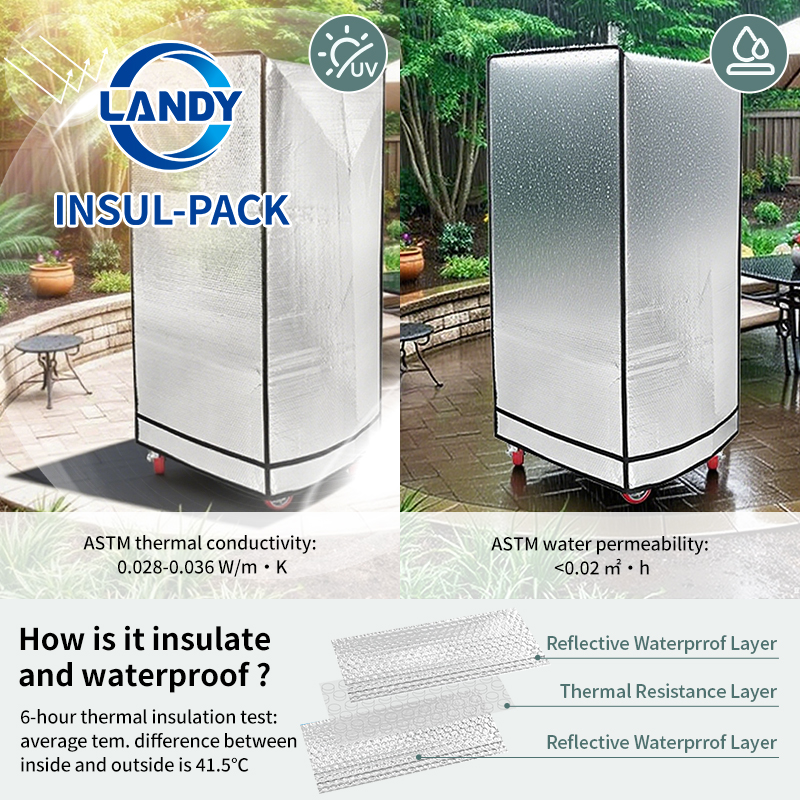

Avg. In-Out ΔT (6h)

39.1℃    41.5℃

SGS & CTB Thermal Insulation Test

Thickness 3mm Metallized Foil Bubble Insulation Thermal Conductivity

0.028 W/m.k

ASTM-C-518-21

Thickness 6mm Metallized Foil Double Bubble Insulation Thermal Conductivity and Thermal Resistance

0.037 W/m.k、0.161 (㎡.K)/W

ASTM-C-518-21

Thickness 3mm Aluminum Bubble Insulation Thermal Conductivity

0.0297 W/m.k

ASTM-C-518-21

Thickness 6mm Aluminum Double Bubble Insulation
Thermal Conductivity and Thermal Resistance

0.044W/m.k、0.136(㎡.K)/W

ASTM-C-518-21

Alu Bubble
Tensile Strength

329-373 N/50mm

JC/T 2494-2018

241 SVHCs

≤0.1(ND) w/w

REACH Regulation No. 1907/2006

Reflectivity

≥90%

Internal Test

High & Low Temp. Resistance

80℃ and -40℃, dimensional change rate <2%

Internal Test
