RB pure aluminum woven fabric insulation tray cover

Product category:Cold Chain Logistics Packaging-Insulated Packaging for Warehouse

Material: Aluminum foil+Polyethylene woven fabric+Aluminum foil

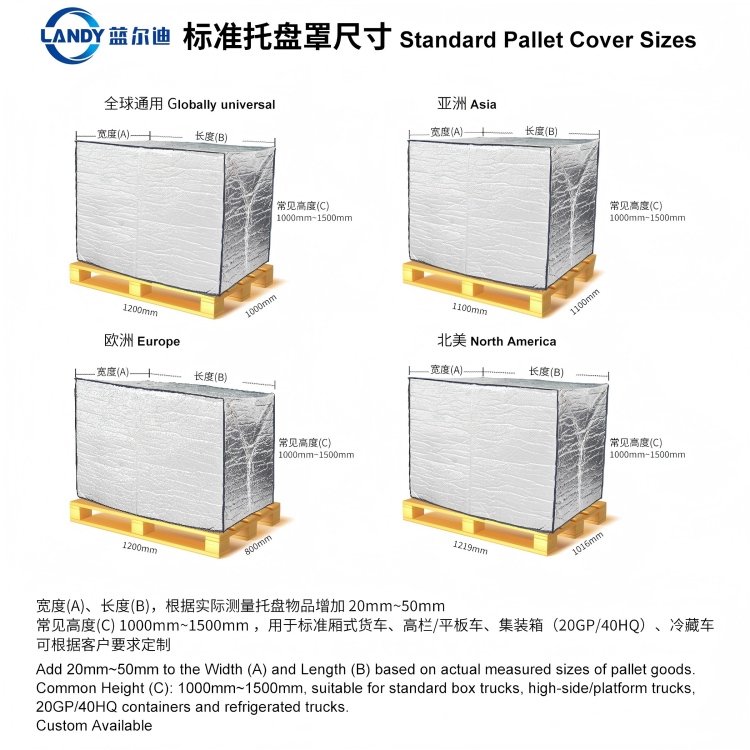

Common specifications:
Length x Width x Height: 1200mm x 1200mm x 800mm~1600mm
Length x Width x Height: 1200mm x 1000mm x 800mm~1600mm
Length x Width x Height: 1200mm x 800mm x 800mm~1600mm
Length x Width x Height: 1140mm x 1140mm x 800mm~1600mm
Length x Width x Height: 1100mm x 1100mm x 800mm~1600mm
Other tray specifications can be customized, and the height can be customized
Thickness: 0.5mm Splicing and sealing: Zipper sealing, Velcro, sewing edge wrapping, etc., customizable
Style and Additional Features: 5 or 6 sided protection, transparent plastic windows, brand logo, etc., customizable.
Working temperature: -40~100 ℃
The main application scenarios of the product are: (1) Cold chain fresh food: providing full thermal protection for the storage and transportation of temperature sensitive goods such as frozen food, fresh fruits and vegetables, dairy products, and red wine.
(2) Medical cold chain: provides compliant and reliable peripheral protection for the storage and transportation of temperature controlled goods such as vaccines, diagnostic reagents, biological samples, and pharmaceuticals.
(3) Precision electronics: provides moisture-proof protection for the storage and transportation of precision components, optical equipment, and high-end electronic products.

Product Introduction

This product adopts a multi-layer structure of pure aluminum film/PE/woven fabric/PE/pure aluminum film. Its lightweight design and customizable structure create a comprehensive peripheral protection system that integrates thermal insulation, waterproofing, and dust prevention for various types of palletized goods.


Features:
A. The material complies with the EU REACH material safety standards
B. The maximum temperature difference between the inside and outside of the heat shield can be reduced by 6 ℃ -15 ° C
C. It can effectively block oxygen, water vapor, and ultraviolet rays, and can avoid sunlight and light;
D. Lightweight, tear resistant, sturdy and durable, foldable, reusable, space saving and cost-effective.




RB Pallet Cover Technical Parameters

Performance

Index Value

Reference Standards

Water Vapor Transmission Rate

<0.02㎡.h

ASTM E96

Burst Strength

1366kPa

ISO 2759:2014

Tensile Strength

520-650N/50mm

ISO 2759:2014

Environmental Safety

REACH Passed

1907/2006号REACH法规

Reflectivity

96%


High/Low Temperature Resistance

80℃ and -40℃, dimensional change rate <2%


Note: This product can be tested and customized according to different market standards with reference to varying market demands.

Explanation:
(1) The above technical parameters were measured by authoritative third-party testing institutions or Lanerdi laboratories under specific working conditions. The actual usage environment may differ from the laboratory testing data.
(2) The above is a partial display of product parameters. For more detailed parameters, please consult our service personnel or refer to the technical parameters of relevant rolls.







Product precautions: 1. Storage environment: It is recommended to store in a cool, dry, and clean indoor environment, avoiding prolonged direct sunlight and keeping away from sharp objects to prevent aging or damage to the aluminum film. 2. Stacking height: When folding and stacking empty covers, it is recommended to stack at a height of ≤ 1.5 meters to prevent deformation of the bottom cover under pressure. 3. Daily cleaning: Use a clean damp cloth to wipe surface stains and let them air dry naturally. Do not use hard brushes, strong acids, strong alkalis, or organic solvents to clean, so as not to damage the aluminum film layer.
4. Transportation/Stacking Protection: When transporting or storing stacks, it is recommended to place a piece of kraft paper, corrugated cardboard, or specialized anti slip paper between the upper and lower insulation covers. This can effectively prevent friction damage to the aluminum film, while enhancing interlayer friction and improving stacking stability.
5. Other questions: For more usage details, please refer to the product manual or consult our sales personnel.  "



To meet the personalized needs of different goods, pallets, and usage scenarios, we provide comprehensive customization services:
1. Size customization: Tailored according to your pallet specifications and cargo stacking height to ensure a perfect fit.
2. Structural customization: Multiple structures are available, including five/six face mask bodies, side zippers for easy inspection, and bottom elastic bands for reinforced bonding.
3. Material customization: Special properties such as anti-static, ultra-low temperature resistance, or food contact grade can be added as needed.
4. Sample making service: Provide customized sample services, confirm accuracy, and mass produce to reduce procurement risks.
5. Printing customization: Customized logos, operation instructions, or barcodes can be printed on the surface of the cover to enhance the brand image.
