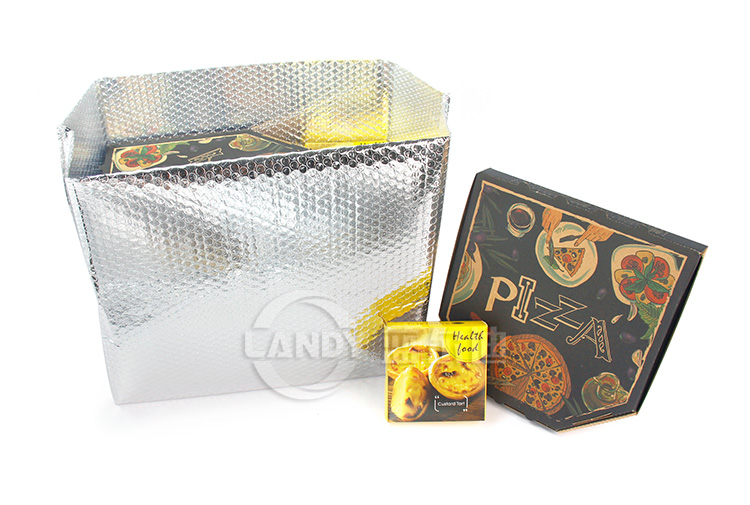

Aluminum plated PE bubble three-dimensional inner lining bag

Product category:Cold Chain Logistics Packaging-Insulated Shipping Liners and Mailers

Material: Aluminum plated/Pure Aluminum+Single layer Bubble/Double layer Bubble+Aluminum plated/Pure Aluminum
Common specifications (length X width X height)
34 X 24 X 33 bubble square bottom bag m for No. 3 foam box
30 X 17 X 26 bubble square bottom bag m for No. 4 foam box
24 X 12 X 24 bubble square bottom bag m for No. 5 foam box
22 X 11 X 22 bubble square bottom bag m for No. 6 foam box
19 X 8 X 20 bubble square bottom bag m for No. 7 foam box
54 X 39 X 50 Bubble Square Bottom Bag m Extra Large
45 X 34 X 43 Bubble Square Bottom Bag m Universal
Customizable specifications
Purpose: Suitable for packaging of cold chain goods that require cold insulation, thermal insulation, waterproofing, oil resistance, etc. in the distribution and delivery process
Craftsmanship (Style): Flat mouth or tongue style; Add self-adhesive tape opening
Applicable scenarios:
(1) Frozen fresh produce, fruits, vegetables, and red wine procurement and delivery
(2) Fast food, cakes, desserts, ice cream, drinks, pizza, barbecue and other takeout products are kept warm and cold,
(3) Outdoor leisure/supermarket procurement

Product Introduction

Features:

1. The material meets the hygiene standards of food packaging bags and the EU ROHS material safety standards
2. Insulation effect: The temperature should not exceed 8 ℃ within 15 hours (not rigorous, no data support)

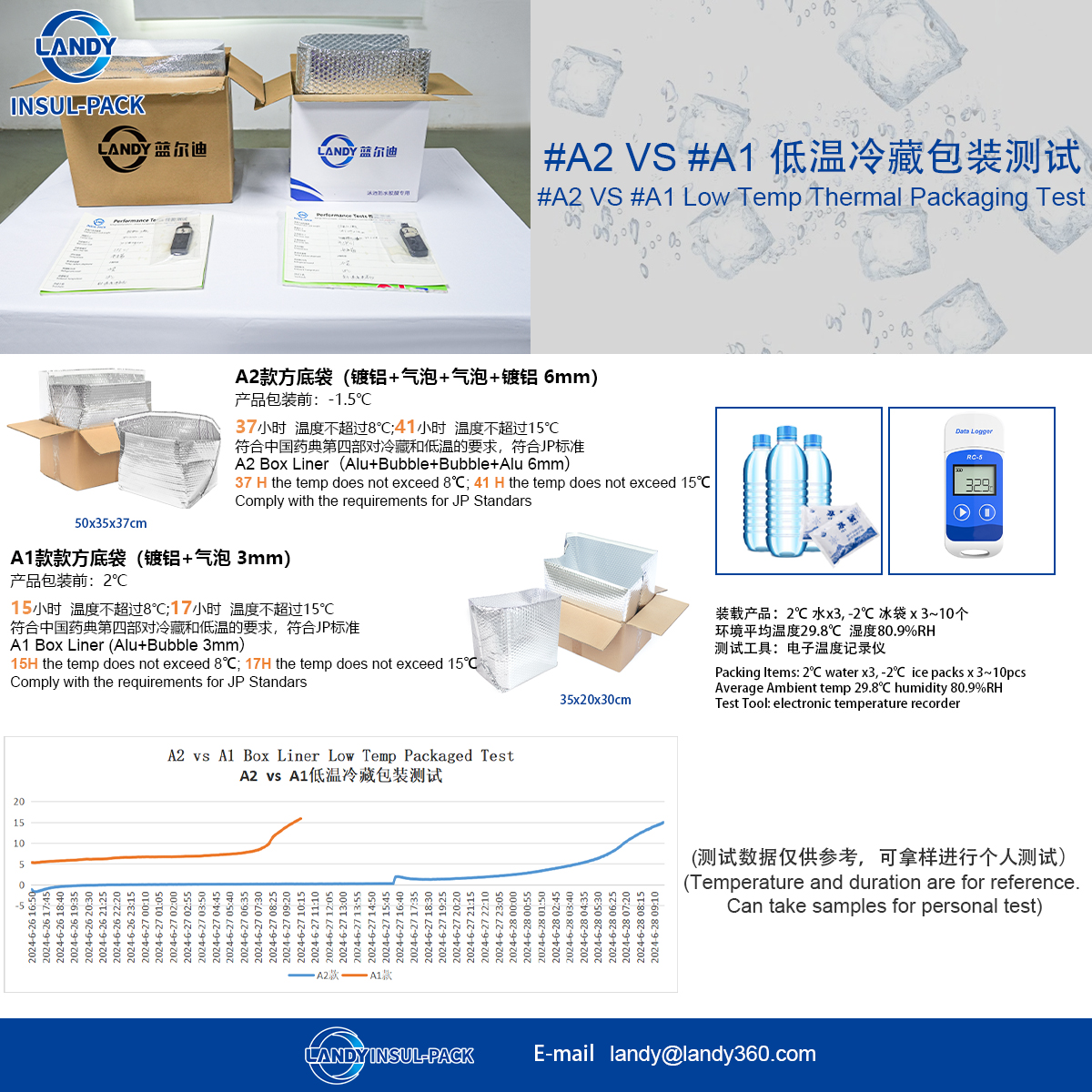

3. Cold insulation effect: 48 hours cold insulation (used with foam box+ice bag)
4. It has the characteristics of light shielding, oil resistance, water resistance, and easy cleaning
5. Lightweight, foldable, recyclable, cushioned, shockproof, and cost-effective.


Alu Bubble Liner Bag Technical Parameters

Performance

Index Value

Thickness

3-6mm

Load Bearing

35kg

Thermal Resistance

0.092㎡·K/W

Tensile Strength

329-373 N/50mm

Tear Resistance

21.9N

Working Temperature

-40-80°C;

Environmental Safety

REACH Passed


Notes:
1. Data may vary slightly when tested under different ambient temperatures.
2. Custom R&D is available for additional performance requirements.

Explanation:

 (1) The above technical parameters were measured by authoritative third-party testing institutions or Lanerdi laboratories under specific working conditions. The actual usage environment may differ from the laboratory testing data.
(2) The above is a partial display of product parameters. For more detailed parameters, please consult our service personnel or refer to the technical parameters of relevant rolls.
