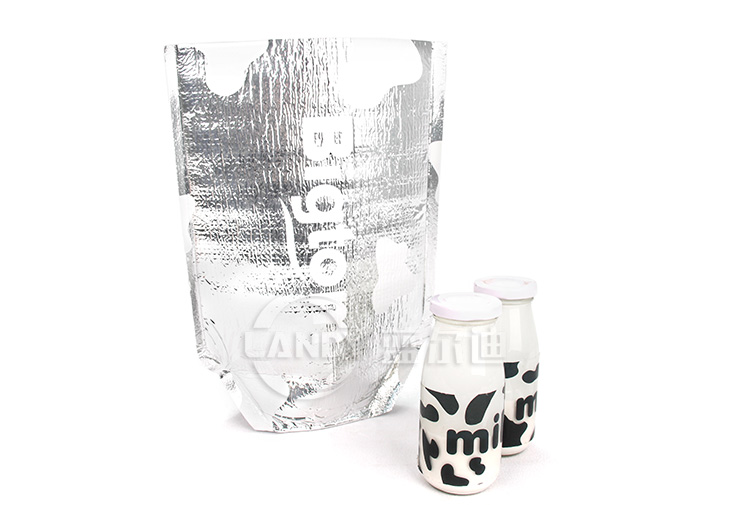

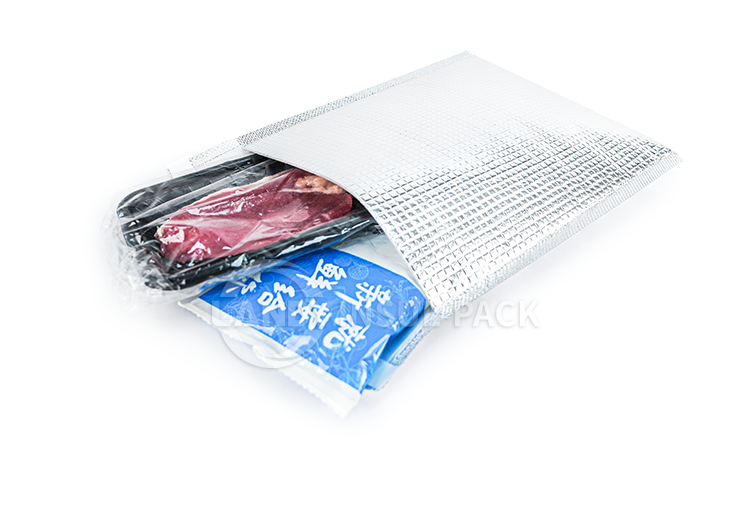

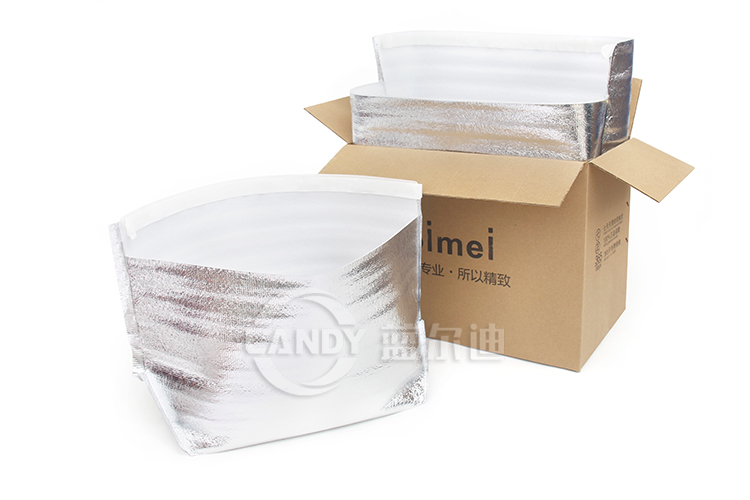

Aluminum film EPE pearl cotton three-dimensional inner lining bag

Product category:Cold Chain Logistics Packaging-Insulated Shipping Liners and Mailers

Material: Aluminum film+EPE foam
Common specifications (length X width X height)
34 X 24 X 33EPE square bottom bag m for No. 3 foam box
30 X 17 X 26EPE square bottom bag m for No. 4 foam box
24 X 12 X 24EPE square bottom bag m for No. 5 foam box
22 X 11 X 22EPE square bottom bag m for No. 6 foam box
19 X 8 X 20EPE square bottom bag m for No. 7 foam box
54 X 39 X 50EPE square bottom bag m extra large
45 X 34 X 43EPE square bottom bag m universal
Customizable specifications
Purpose: Suitable for packaging of cold chain goods that require cold insulation, thermal insulation, waterproofing, oil resistance, etc. in the distribution and delivery process
Craftsmanship (Style): Flat mouth or tongue style; Add self-adhesive tape opening
Applicable scenarios:
(1) Frozen fresh produce, fruits, vegetables, and red wine procurement and delivery
(2) Fast food, cakes, desserts, ice cream, drinks, pizza, barbecue and other takeout products are kept warm and cold,
(3) Outdoor leisure/supermarket procurement

Product Introduction

The aluminum film EPE pearl cotton three-dimensional inner lining bag is composed of high reflectivity aluminum film and ultra-low thermal conductivity EPE (polyethylene) cotton composite through environmentally friendly technology, and is widely used in various scenarios requiring temperature stability, freshness and quality in cold chain logistics.


Features:
1. The material meets the hygiene standards of food packaging bags and the EU ROHS material safety standards

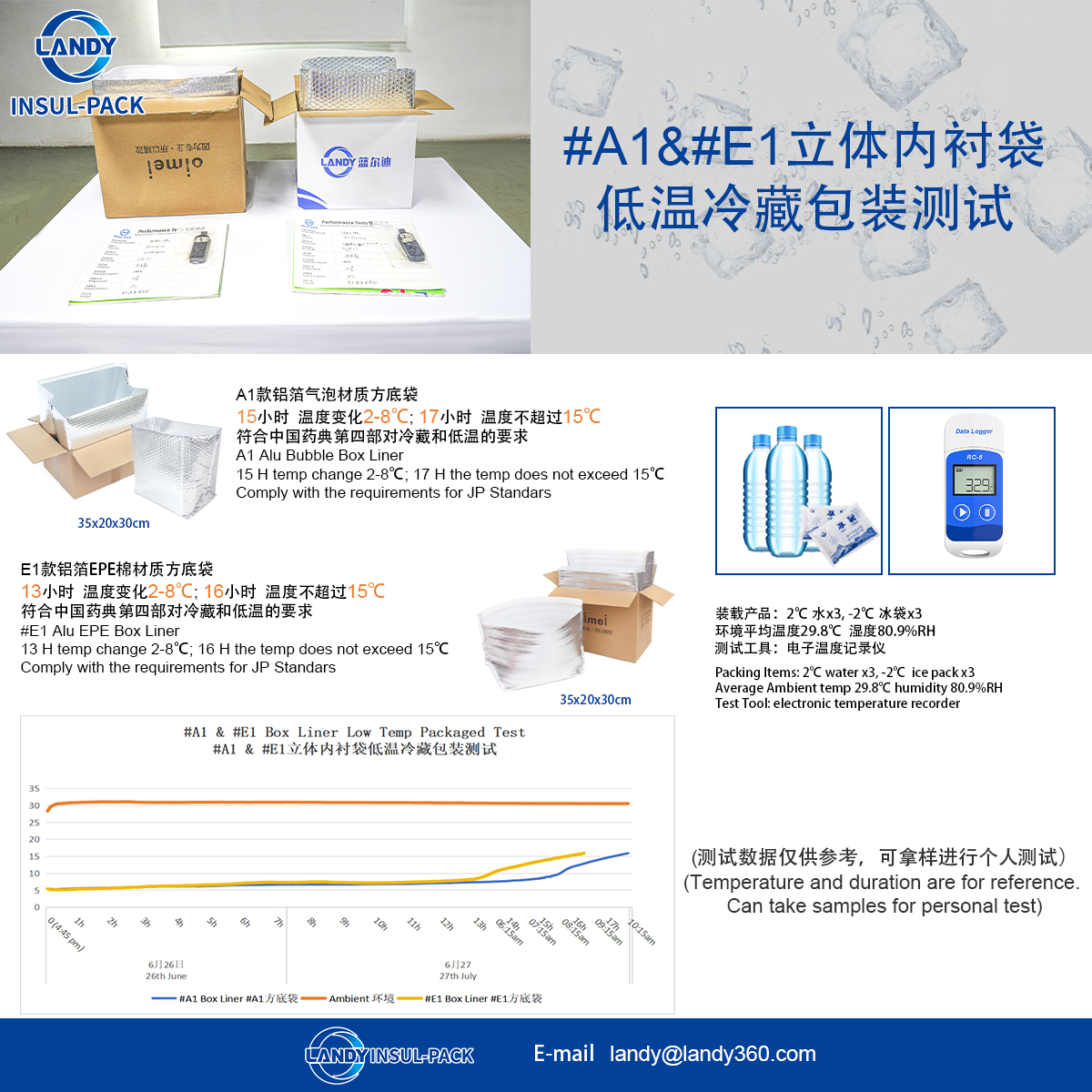

2. Cold insulation effect: 24-hour cold insulation (used with foam box+ice bag)
3. It has the characteristics of light shielding, oil resistance, water resistance, and easy cleaning
4. Lightweight, foldable, recyclable, cushioned, shockproof, and cost-effective.



Alu Bubble Liner Bag Technical Parameters

Performance

Index Value

Thickness

5mm

Thermal Resistance

0.143㎡·K/W

Working Temperature

-40-80°C;

Environmental Safety

REACH Passed

Notes:
1. Data may vary slightly when tested under different ambient temperatures.
2. Custom R&D is available for additional performance requirements.

Explanation:

 (1) The above technical parameters were measured by authoritative third-party testing institutions or Lanerdi laboratories under specific working conditions. The actual usage environment may differ from the laboratory testing data.
(2) The above is a partial display of product parameters. For more detailed parameters, please consult our service personnel or refer to the technical parameters of relevant rolls.
