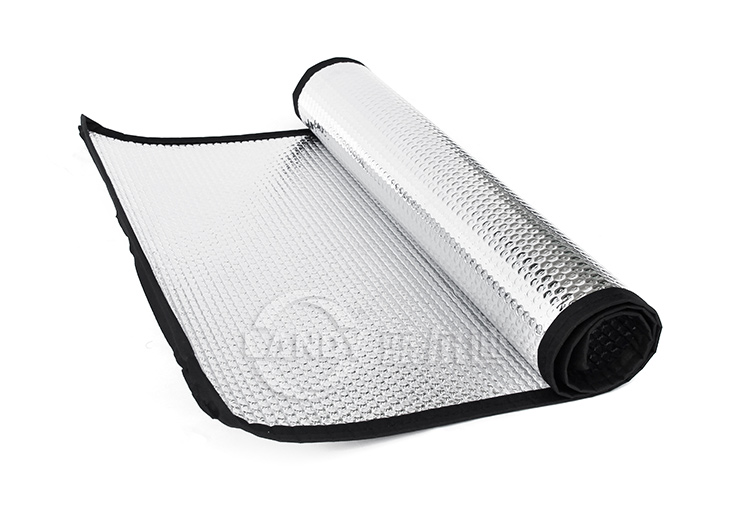

EspañolHome sun room glass window heat insulation sun protection reflective sheet
Features:
Sun protection & heat insulation, for winter & summer
Comes with mounting accessories: easy to install & store
Edge wrapping extends service life
Lowers sunroom temp by 8-15℃, ~90% shading rate
|
Test Items (Standards) |
Alu Foil Bubble |
Alu Foil Double Bubble |
|
Thermal Resistance (ASTM-C518-21) |
0.092 (㎡·K)/W |
0.92 (㎡·K)/W |
|
Thermal Conductivity (ASTM-C518-21) |
0.028 W/m·k |
0.036 W/(m·k) |
|
Reflectivity (ASTM E424) |
95% - 97% |
|
|
REACH Material Safety (1907/2006) |
Pass |
|
|
High & Low Temperature Resistance (EN 1604:2013) |
-40℃-80℃ |
|
|
Tensile Strength (JC/T2494-2018) |
370 N/mm |
|
|
Burst Strength (GB/T1539-2007) |
1022 Kpa |
|
|
Water Vapor Transmission Rate (ASTM E96) |
<0.02㎡.h |
|
|
Fireproof Rating (GB/T 20284-2006) |
B1 |
|
|
Test Items (Standards) |
EPE 5mm |
EPE 10mm |
|
Thermal Resistance (ASTM-C518-21) |
0.143 (㎡·K)/W |
0.25 (㎡·K)/W |
|
Thermal Conductivity (ASTM-C518-21) |
0.035 W/m·k |
0.04 W/(m·k) |
|
Reflectivity (ASTM E424) |
95% - 97% |
|
|
REACH Material Safety (1907/2006) |
Pass |
|
|
ROHS Material Safety (2011/65/EU) |
Pass |
|
|
High & Low Temperature Resistance (EN 1604:2013) |
-40℃-80℃ |
|
|
Water Vapor Transmission Rate (ASTM E96) |
<0.02㎡.h |
|
