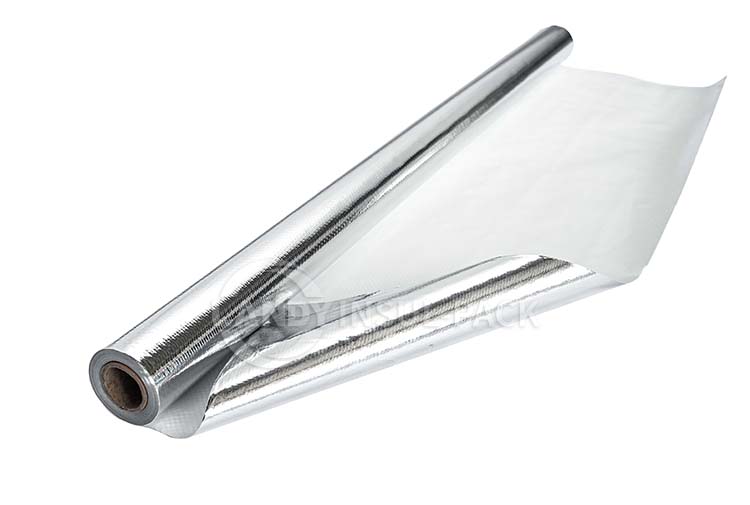

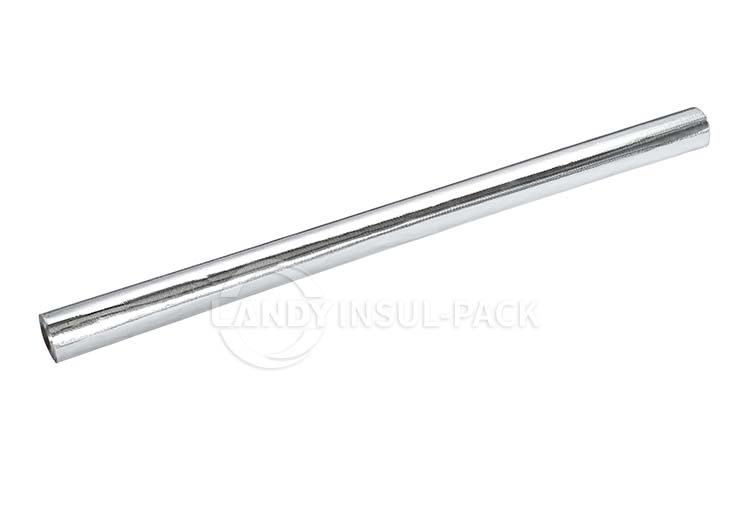

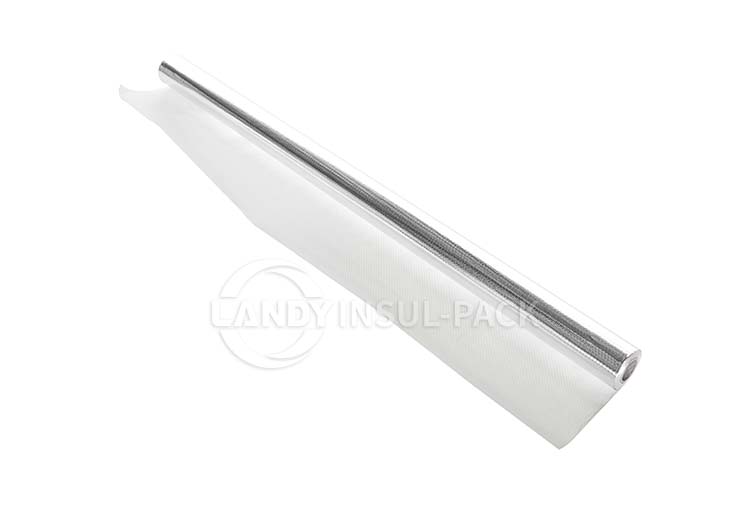

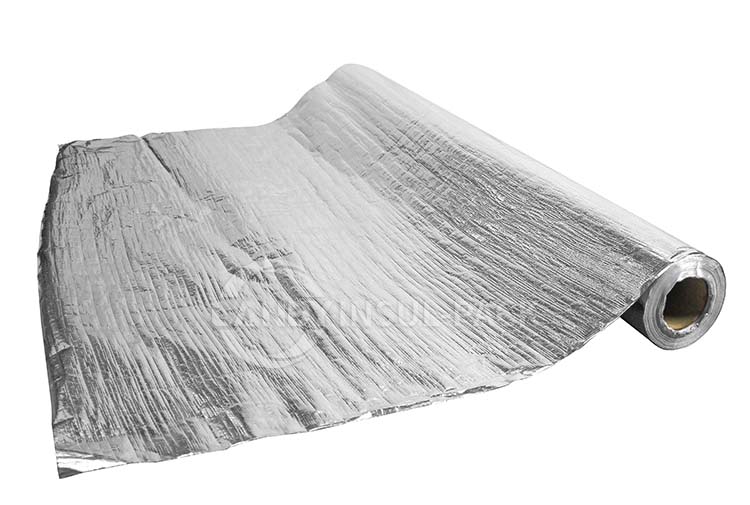

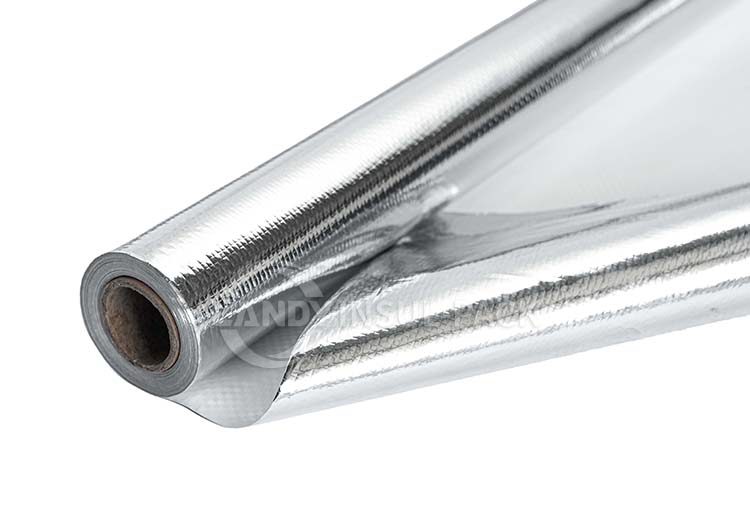

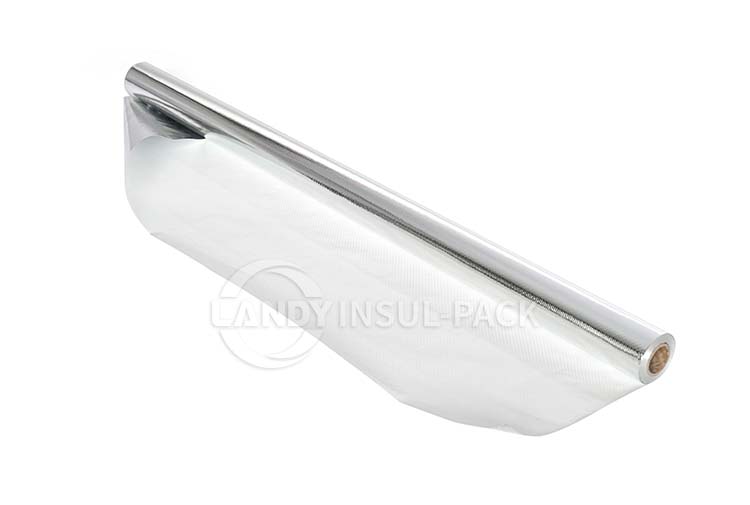

EspañolPure aluminum woven fabric roll insulation woven film with a width of up to 1.5 meters, high tensile strength and durability. Non toxic, non allergic, recyclable, environmentally friendly
Features:
A. Thermal insulation, green and energy-saving
B. Reflectivity of 95% -97%,
C. Excellent waterproof and moisture-proof performance
D. Safe, environmentally friendly, non-toxic
E. This material is very durable, tear resistant, easy to process and install.
|
Test Items (Standards) |
Parameter |
|
Tensile Strength |
520 - 650 N/50mm |
|
Water Vapor Transmission Rate (ASTM E96) |
<0.02㎡.h |
|
Burst Strength (ISO 2759:2014) |
96% |
|
Reflectivity (ASTM E424) |
Pass |
|
REACH Material Safety (1907/2006) |
Pass |
|
High & Low Temperature Resistance (EN 1604:2013) |
-40℃-80℃ |
(2) The above is a partial display of product parameters. For more detailed parameters, please consult our service personnel or refer to the technical parameters of relevant rolls.
1. Storage environment: The product should be stored in a clean, dry, ventilated, and temperature appropriate warehouse, away from direct sunlight, not less than 1 meter away from heat sources, and stacked reasonably. 2. Protection requirements: Avoid contact with sharp objects and prevent puncturing the reflective film; Long term heavy pressure may cause material deformation, please stack them reasonably. 3. Storage period: It is recommended to use it for no more than 18 months from the date of production. Beyond this deadline, please conduct performance testing to confirm before use. Precautions for the use, processing, and maintenance of the product
1. Cutting: Use sharp knives to avoid rough edges and wire drawing. When making lining products, please reserve 1-2% compression allowance for cutting size to ensure a tight fit. 2. Splicing: Please be sure to use aluminum foil special tape to stick the seams to ensure airtightness, and avoid using ordinary transparent tape. 3. Heat sealing (applicable to airtight products): If hot pressing edge sealing is required, it is recommended to first test the sample and control the temperature at 180-220 ℃ to avoid overheating and piercing the aluminum plating layer. 4. Stitching (applicable to non airtight products): Only suitable for scenarios where insulation requirements are not high, needle holes may damage airtightness, please be careful when choosing. 5. Installation: Before making the lining product, please check the inner wall of the box, remove sharp burrs, and prevent puncturing the reflective layer. 6. Cleaning: For daily cleaning, use a soft cloth dipped in neutral detergent or clean water to wipe. Do not use hard brushes, strong acids, strong alkalis, or organic solvents. 7. Customized processing: Our company can provide customized processing services for various types of thermal insulation products. Please feel free to inquire.
1. Explanation of warranty terms:
Our company promises that under normal storage, transportation, and usage conditions, if there are structural defects in the product caused by the material itself (such as abnormal separation of the composite layer) within one year from the date of order delivery, we will provide you with warranty services.
After verification, it has been confirmed that it is a product quality issue. Our company's liability limit is to replace the same quantity of qualified products for free, or refund the contract amount for that part of the product.
This warranty responsibility does not include transportation costs, construction labor costs, and other indirect losses incurred due to product replacement.
2. The following situations are not covered by the warranty:
(1) Failed to provide complete product transaction vouchers;
(2) Damage caused by improper transportation, storage, construction installation, or daily maintenance;
(3) Not declared within the warranty period;
(4) Caused by force majeure (such as natural disasters, wars, etc.);
(5) Surface stains, slight creases, and normal attenuation of material glossiness that occur during product use.
3. About Customized Product Description
For customized products produced according to your specific needs (such as special specifications, printed labels, etc.), due to their exclusivity and non reusable nature, once produced and accepted as qualified, returns or exchanges due to non quality reasons such as market changes or changes in usage scenarios are not accepted. To ensure that the finished product meets your expectations, we strongly recommend that you conduct sample confirmation before mass customization.
Our company promises that under normal storage, transportation, and usage conditions, if there are structural defects in the product caused by the material itself (such as abnormal separation of the composite layer) within one year from the date of order delivery, we will provide you with warranty services.
After verification, it has been confirmed that it is a product quality issue. Our company's liability limit is to replace the same quantity of qualified products for free, or refund the contract amount for that part of the product.
This warranty responsibility does not include transportation costs, construction labor costs, and other indirect losses incurred due to product replacement.
2. The following situations are not covered by the warranty:
(1) Failed to provide complete product transaction vouchers;
(2) Damage caused by improper transportation, storage, construction installation, or daily maintenance;
(3) Not declared within the warranty period;
(4) Caused by force majeure (such as natural disasters, wars, etc.);
(5) Surface stains, slight creases, and normal attenuation of material glossiness that occur during product use.
3. About Customized Product Description
For customized products produced according to your specific needs (such as special specifications, printed labels, etc.), due to their exclusivity and non reusable nature, once produced and accepted as qualified, returns or exchanges due to non quality reasons such as market changes or changes in usage scenarios are not accepted. To ensure that the finished product meets your expectations, we strongly recommend that you conduct sample confirmation before mass customization.
